Specifications
Intertek ETL listing
CONFORMS TO UL STD 2017 & UL STD 498A (Signaling)
CERTIFIED TO CSA STD C22.2 NO. 205 & CSA STD C22.2 NO. 42 (Current Taps and Receptacles)
Report Number:
3177946CHI-002 Control Number
3186992
Third-party validation confirming products functionality, usability and performance claims performed by: IMR Testing Lab
Materials:
SmartTap Tap Fitting:
Zytel 80G33L NC010 is a 33% glass fiber reinforced polyamide 66 resin with outstanding impact resistance. Melting point 504 F. DuPont Polymer

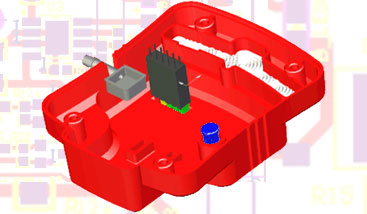

Case:
PCABS blend material - BayBlend (white)
Pressure Sensor:
Pressure Range: 0 … 375Pa (0...1.5" H2O)
Current Consumption: 4mA (no load)
Supply Voltage (VDD): +7V to +20VDC
Temperature Error: +/-6% range +10°C-+35°C

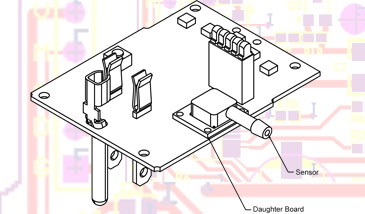

Printed Circuit Board:
Assembled in the United States with some of the components originating outside of the US.
Note: Works on all dryers except those with booster fans, dual motor technology and dryers that share exhaust systems as occasionally found in high-rises.
Materials:
SmartTap Tap Fitting:
Zytel 80G33L NC010 is a 33% glass fiber reinforced polyamide 66 resin with outstanding impact resistance. Melting point 504 F. DuPont Polymer
Case:
PCABS blend material - BayBlend (white)
Pressure Sensor:
Pressure Range: 0 … 375Pa (0...1.5" H2O)
Current Consumption: 4mA (no load)
Supply Voltage (VDD): +7V to +20VDC
Temperature Error: +/-6% range +10°C-+35°C
Printed Circuit Board:
Assembled in the United States with some of the components originating outside of the US.
Note: Works on all dryers except those with booster fans, dual motor technology and dryers that share exhaust systems as occasionally found in high-rises.
Dimensions:
3 3/8” tall by 3 1/6” wide
Depth 2 1/16” with prongs
Package:
6.6 oz. Weight
6.5” wide by 8.5” high by .020 thick
Bulk: 6 per bin box, 36 per master crtn.
Low Differential Air Pressure Sensor
Felt washer: 1/8" x 1.5" w/.38" hole
Thumb-nut: nylon 5/16-18 threads
Tubing: 1/8" ID X 1/4" OD Vinyl PVC 6 ft.
Part No. ALRT31
Made In The United States
US Patent 6,785,981, Others Pending
120V 60Hz 15 amp max pass through
Do Not Connect To A Receptacle
Controlled By A Switch
Quick Start Guide
3 3/8” tall by 3 1/6” wide
Depth 2 1/16” with prongs
Package:
6.6 oz. Weight
6.5” wide by 8.5” high by .020 thick
Bulk: 6 per bin box, 36 per master crtn.
Low Differential Air Pressure Sensor
Felt washer: 1/8" x 1.5" w/.38" hole
Thumb-nut: nylon 5/16-18 threads
Tubing: 1/8" ID X 1/4" OD Vinyl PVC 6 ft.
Part No. ALRT31
Made In The United States
US Patent 6,785,981, Others Pending
120V 60Hz 15 amp max pass through
Do Not Connect To A Receptacle
Controlled By A Switch
Instruction Manual (pdf)
Quick Start Guide
